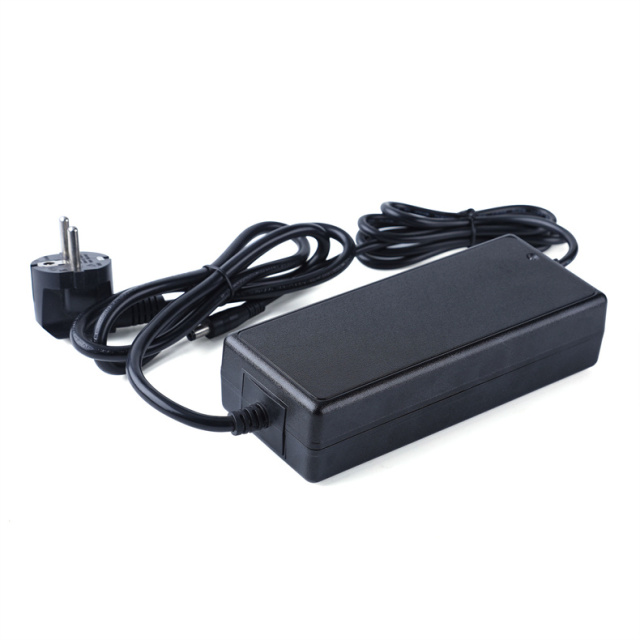

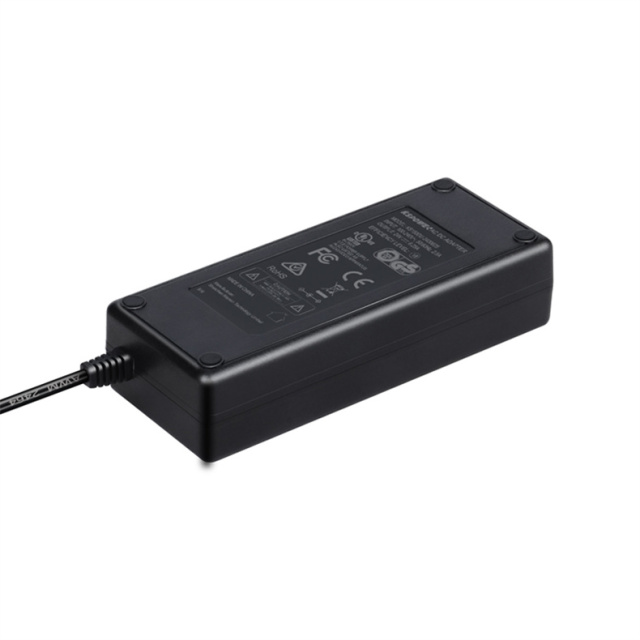

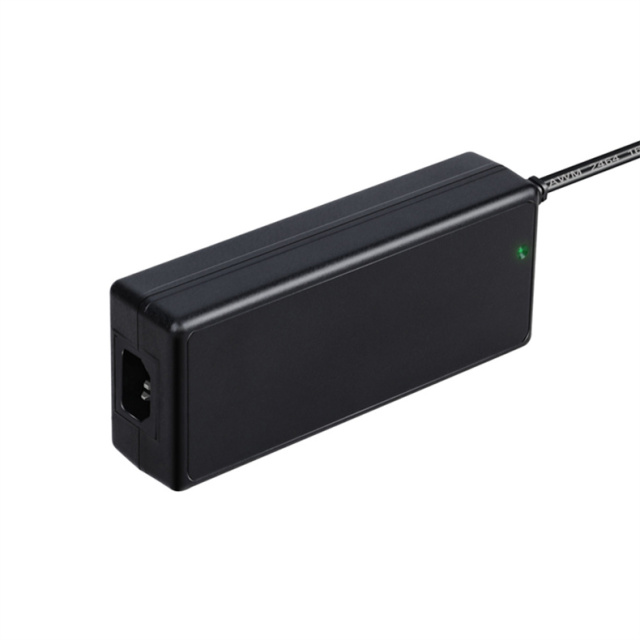

PFC Function 14V/10A Laptop Power Supply Adapter 140W

PFC Function 14V/10A Laptop Power Supply Adapter 140W

Features

◆ Desktop style, up to 140W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin): IEC320-C8;

ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14

◆ Pass LPS (Limited power source)

◆ High power factor

◆ Compact Size, fully enclosed plastic case

◆ LED indicator for power on

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 6.772 x 3.346 x 1.575
Dimensions LxWxH (mm): 172 x 85 x 40
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.21W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL62368, UL60950, CSA22.2, TUV EN60950, AS/NZS 60950, GB4943, J60950(H22), K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS

Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc

Mechanical Specification

Package

Model No.: KS150DU-1401000

Brand: KSPOWER

Place Of Origin: China

Output Type: Dc

Connection Method: Desktop

Usage: Laptop LED LCD...

Output Type: Single Output

Certification: TUV GS UL CE FCC PSE CCC...

Color: Black / White

Type: OEM

Connection: Desktop

Warranty: 3 Years

Material: PC

Input: 100-240VAC 50-60HZ

Efficiency: Level VI

Protections: OCP OVP SCP

DC Connector: Male 5.5*2.1mm Or Custom

DC Cord: 1.2m Or Custom

AC Plugs: US/ EU/ AU/ UK/ KR/ CN (optionals)

Packaging: a. 1pc per inner brown box b. 20pcs per standard carton c. custom is acceptable d.sample is available

Productivity: 100000

Transportation: Ocean,Air,Express,Land,Others

Place of Origin: China

Supply Ability: 500000

Certificate: ISO9001:2015,UL CE FCC RCM KC GS RoHS...

HS Code: 850440

Port: Shenzhen

Payment Type: T/T,Paypal,Others

Incoterm: FOB,EXW,Express Delivery,DDP,DDU

Selling Units:Piece/Pieces

Package Type:a. 1pc per inner brown box b. 20pcs per standard carton c. custom is acceptable d.sample is available

Picture Example:
