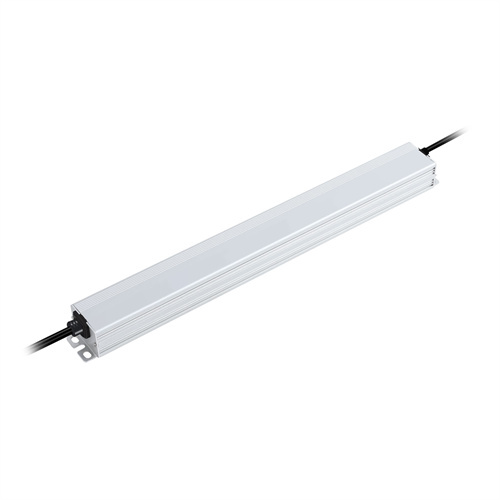

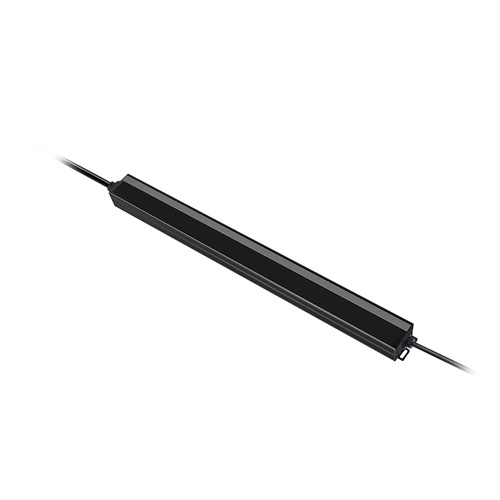

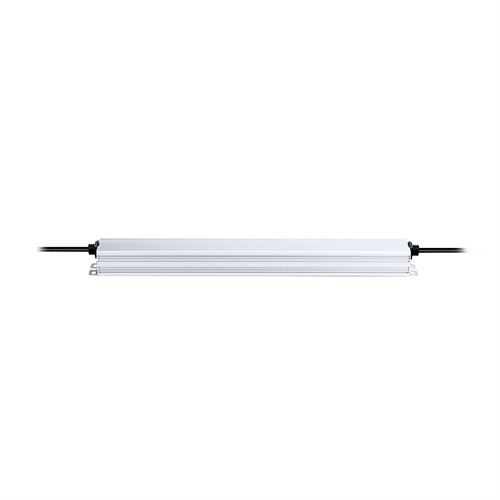

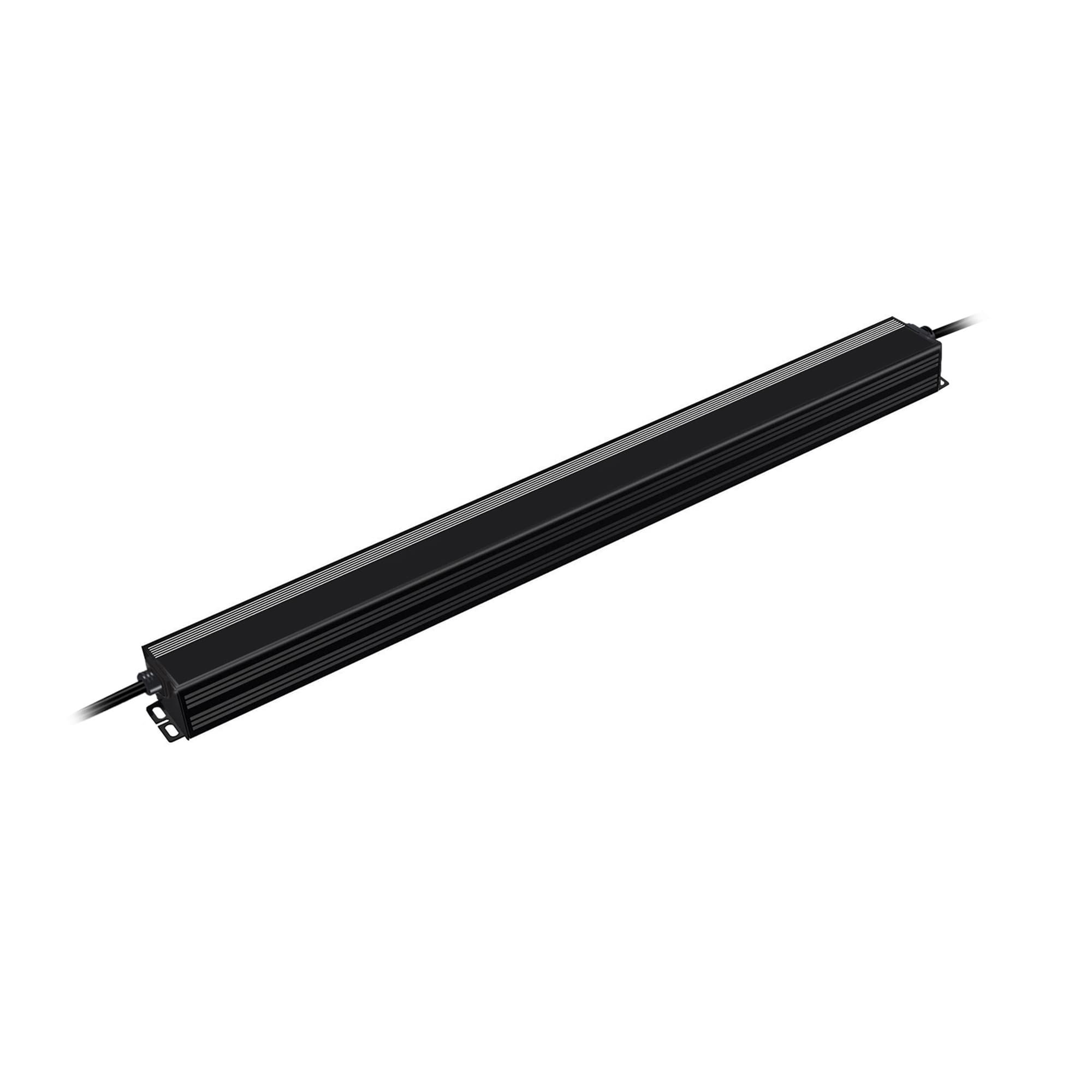

ZhenHuan L SERIES – CONSTANT VOLTAGE
The L series LED Drivers is one 60W slim Class 2, Class P, TYPE HL, led driver for LED tape lighting, tube lighting, strip lighting and multiple other commercial lighting applications. The AC to DC LED drivers aluminum enclosure is rated IP65 for indoor or outdoor installations and includes a separate input and output wiring compartment for clean and easy installation. The slim led transformer features hiccup mode, over current and short circuit protections, as well as an efficiency over >88% resulting in a low operating case temperature.
Universal AC Input | Single Channel Constant Voltage Output | Listed Enclosure
Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
| MODEL | KS-60LX-12 | KS-60LX-24 | KS-60LX-36 | KS-60LX-48 |
| Output Voltage | 12V | 24V | 36V | 48V |
| Output Current | 5A | 2.5A | 1.67A | 1.25A |
| Output Wattage | 60W | 60W | 60W | 60W |
Driver Type: Class 2 Class P
Environmental: Dry and Damp
Features:
Wiring Drawing:

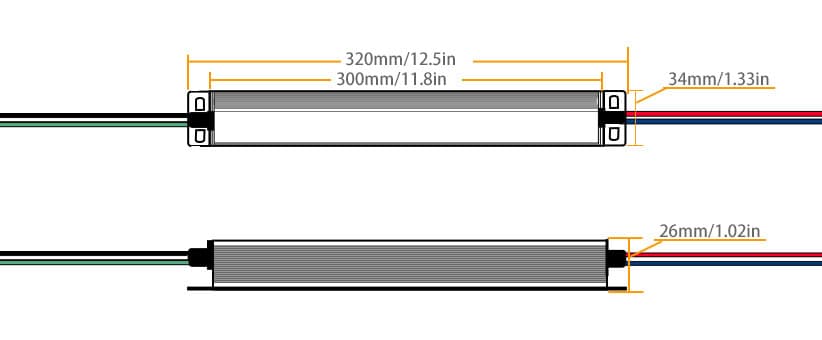

Dimension Drawing(mm):
