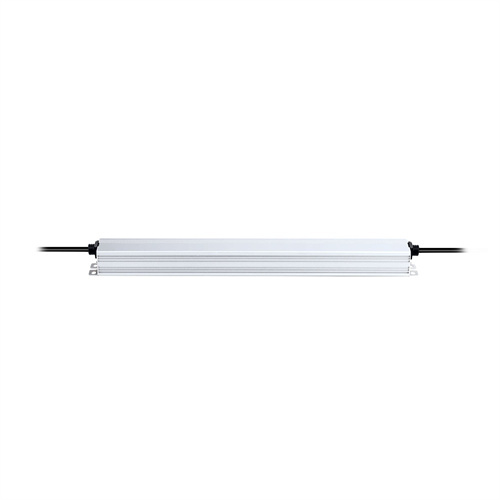

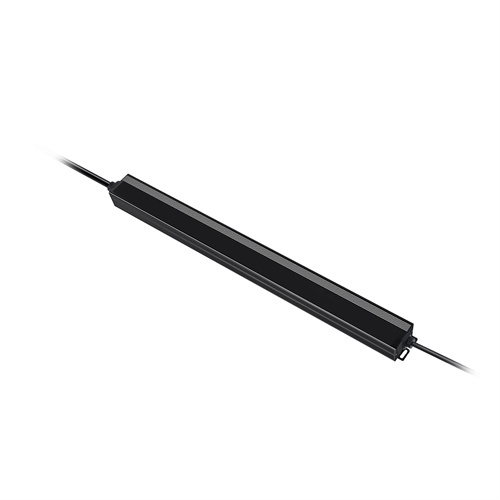

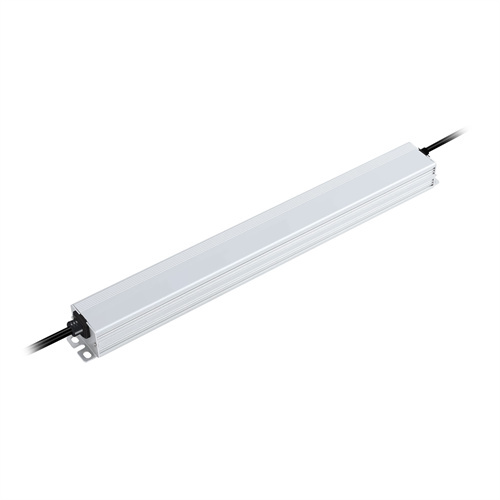

L Series 40W UL CE Outdoor LED Driver

ZhenHuan L SERIES – CONSTANT VOLTAGE
The L series LED Drivers is one 40W slim Class 2, Class P, TYPE HL, high PFC function, constant voltage led driver for LED tape lighting, tube lighting, linear lighting and multiple other commercial lighting applications. The 40W CV LED drivers aluminum enclosure is rated IP65 for indoor or outdoor installations and includes a separate input and output wiring compartment for clean and easy installation. The slim led power transformer  features hiccup mode, over current and short circuit protections, as well as an efficiency over >88% resulting in a low operating case temperature.

Universal AC Input | Single Channel Constant Voltage Output | Listed Enclosure

Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use

Driver Type: Class 2 Class P

Environmental: Dry and Damp

Features:

• Wiring Compartments for Clean and Easy Installation

• Current Limiting Overload Protection

• Flicker-Free

• Smooth Ripple Free Output Voltage

• IP65 Rated Enclosure for Indoor and Outdoor Use

• 5-Years Warranty

• UL/cUL CE FCC RoHS Listed, SELV, Type HL
•

  Wiring Drawing:



  Dimension Drawing(mm):
