96W Multi-Voltage LED Power Supply with Advanced Dimming
Engineered for professional lighting installations, this constant-voltage driver delivers stable, flicker-free output across four selectable DC rails—12V, 24V, 36V, and 48V—to match diverse LED fixture requirements. Active power factor correction exceeds standard thresholds, reducing grid harmonics and utility penalties in commercial deployments.
The platform integrates seamlessly with legacy and modern control infrastructures through Triac phase-cut, ELV transformer, and MLV magnetic dimming protocols, eliminating compatibility barriers during retrofit or new construction projects. Housed in a NEMA 3R-rated enclosure protected by US design patent, the unit withstands direct outdoor exposure without secondary weatherproofing.
UL, cUL, and CE certifications ensure code acceptance across North American and European jurisdictions, while selectable PWM or voltage-reduction output modes accommodate both digital and analog LED module architectures.
Features:
．PWM or Voltage Reduction output Selectable
．Compatible with Forward phase, Reverse phase, Triac,MLV, ELV Dimmers

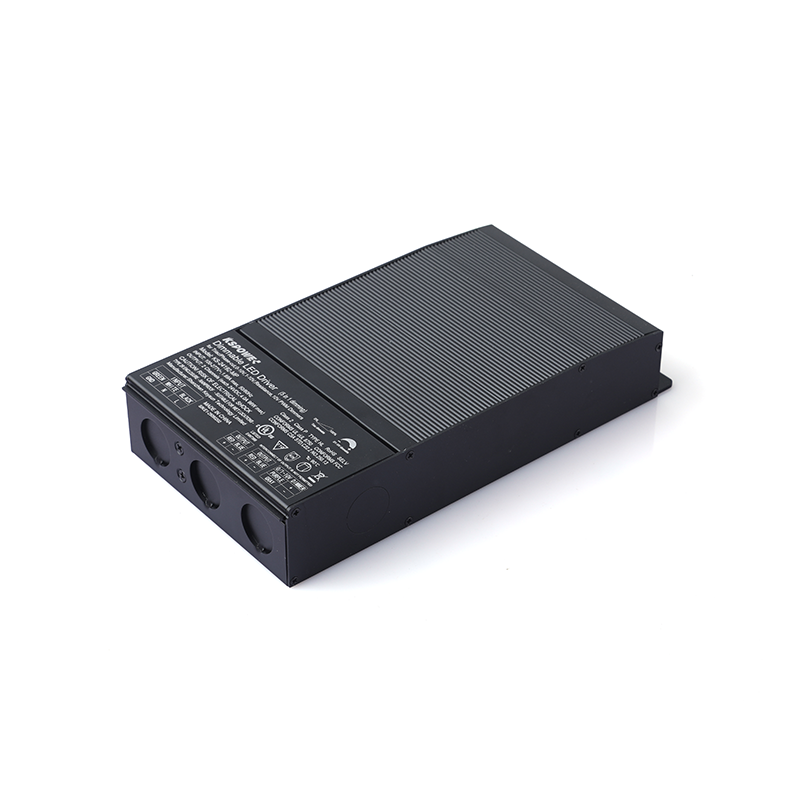

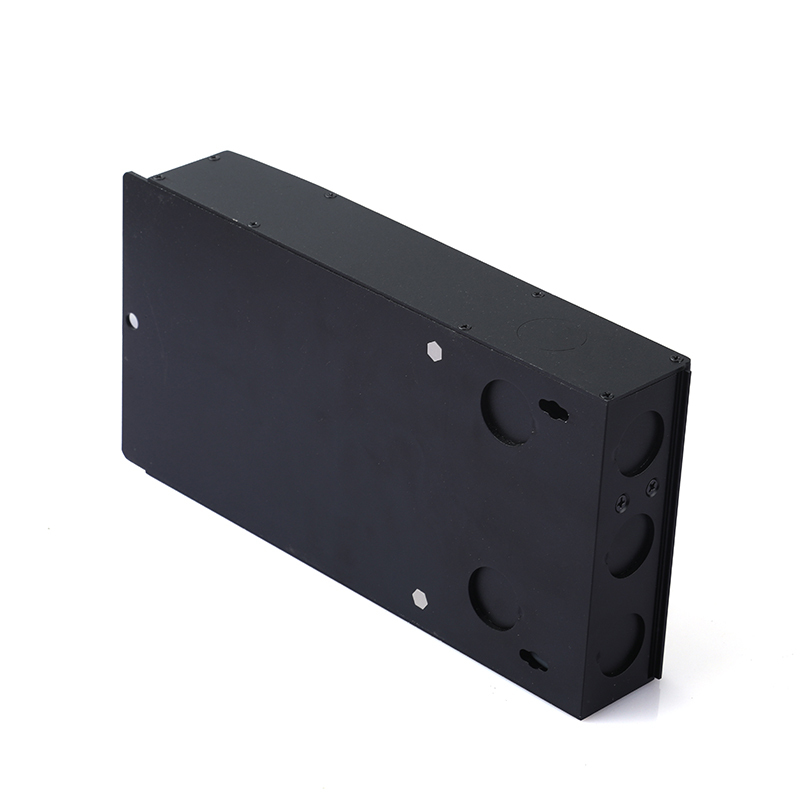

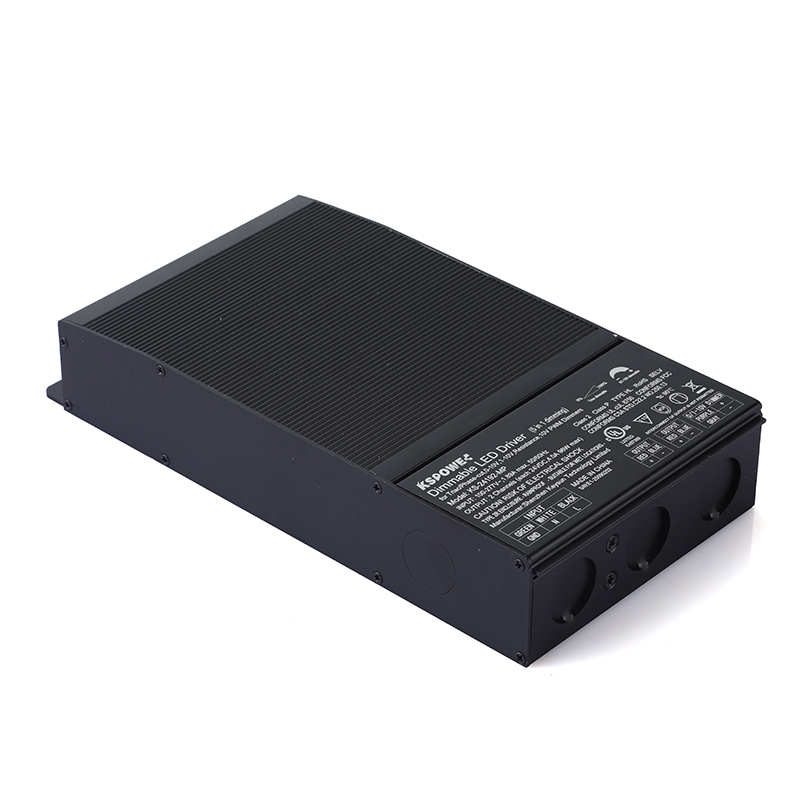

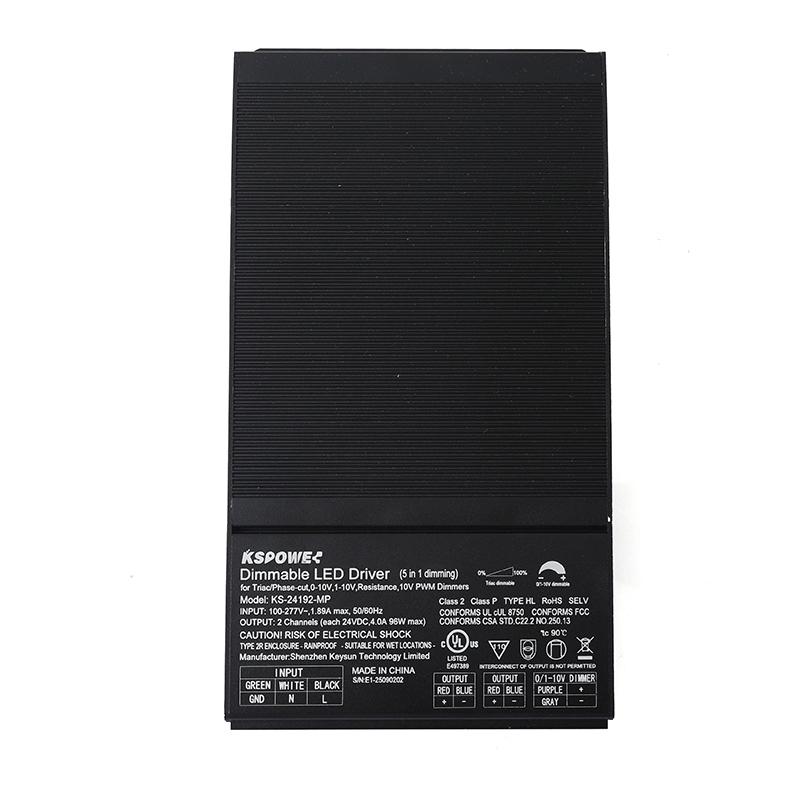

． Super compact Aluminum case
． UL/cUL CE CLASS P FCC RoHS LPS
． NEMA 3R rated - Indoor or Outdoor Use
． Switch to color temperature LED Strips 100%-0.01% dimming flicker- free
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
|
MODEL |
KS-1296a-T |
KS-2496a-T |
KS-3696a-T |
KS-4896a-T |
||
|
OUTPUT |
Output Voltage |
12V |
24V |
36V |
48V |
|
|
Rated current x Channel |
8A |
4A |
2.66A |
2.0A |
||
|
Rated power |
96W |
96W |
96W |
96W |
||
|
Ripple & Noise (max.) |
200mVp-p |
250mVp-p |
250mVp-p |
250mVp-p |
||
|
Voltage accuracy |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
||
|
Linear adjustment rate |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
|
Load adjustment rate |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
|
Start, rise time |
1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC |
|||||
|
Hold time |
10ms/115VAC, 230VAC |
|||||
|
INPUT |
Voltage range |
100 ~ 277VAC |
||||
|
Frequency range |
47 ~ 63Hz |
|||||
|
Power factor |
PF≧0 98/115VAC, PF≧0 95/230VAC , PF≧0.9 /277VAC, Full load |
|||||
|
Total harmonic distortion |
THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC) |
|||||
|
Efficiency |
Vin: 115VAC |
≧90.55% |
≧90.78% |
≧91.28% |
≧91.78% |
|
|
Vin: 230VAC |
≧91.38% |
≧91.56% |
≧92.06% |
≧92.56% |
||
|
AC current |
1.2A |
|||||
|
Inrush current |
Cold start 75A(width=350us measured at 50% l peak)/230Vac |
|||||
|
Leakage current |
< 1 m A |
|||||
|
No load/ standby power consumption |
< 3.6W |
|||||
|
Protection |
Over current |
95 ~ 110% |
||||
|
95 ~ 110% Constant current limit, load abnormal condition can be removed after automatic recovery |
||||||
|
Short circuit |
Burp mode, load abnormal conditions can be removed after automatic recovery |
|||||
|
Over voltage |
13 ~ 16 V |
26 ~ 32 V |
39 ~ 47 V |
52 ~ 63V |
||
|
Turn off the output voltage, restart and resume |
||||||
|
Over temperature |
Turn off the output voltage, restart and resume |
|||||
|
Environment |
Working Temp |
T case=-40 ~ +50℃ |
||||
|
Max.Case Temp |
T case=+90℃ |
|||||
|
Working Humidity |
20 ~ 95% RH, non-condensing |
|||||
|
Storage Temp.,Humidity |
-40 ~ +90℃, 10 ~ 95% RH |
|||||
|
Temp.Coefficient |
±0.03%/℃ (0 ~60℃) |
|||||
|
Vibration |
10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes |
|||||
|
Safety & EMC |
Safety standards:UL8750+UL1310 |
|||||
|
Withstand voltage:I/P-O/P:1.88KVac |
||||||
|
Isolation resistance:I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||||||
|
EMC EMISSION:Confirms to FCC |
||||||
Dimming Connect Drawing:
Dimension Drawing:
