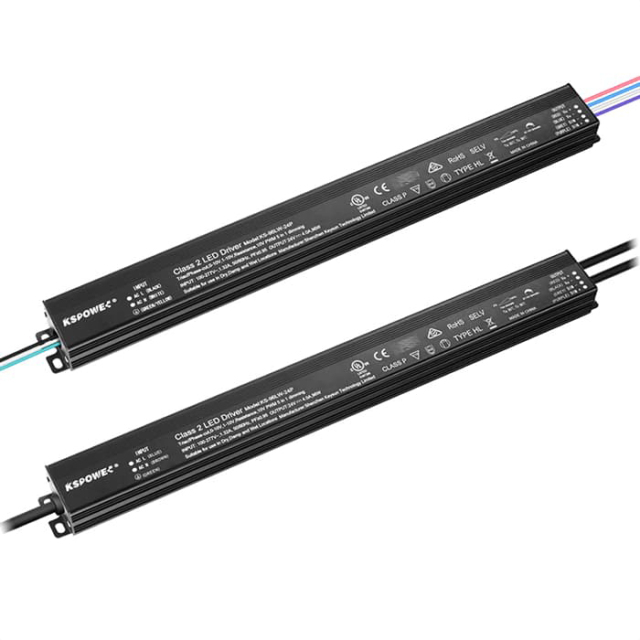

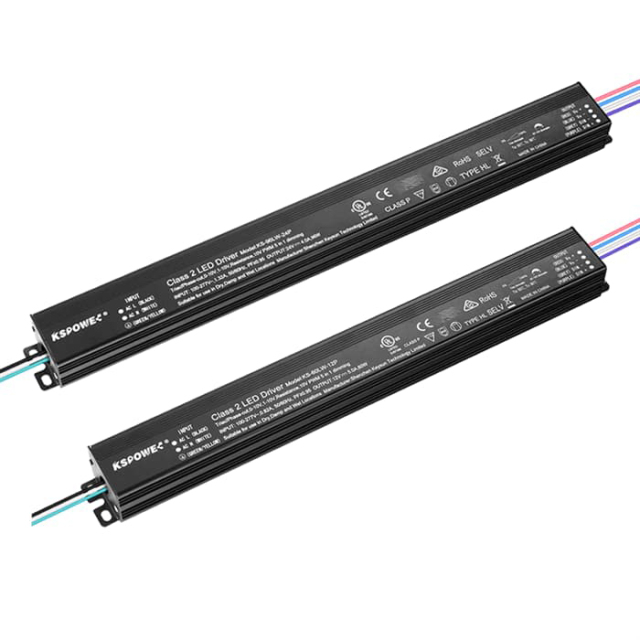

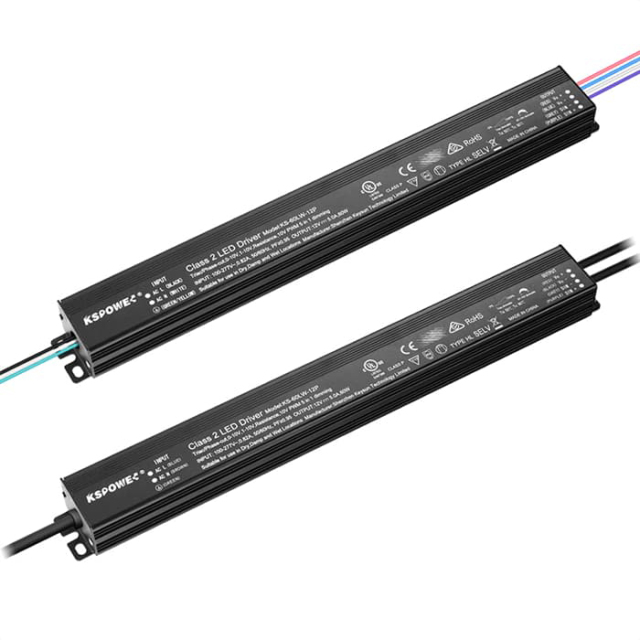

ZhenHuan LO SERIES – CONSTANT VOLTAGE
The LO series 4 IN 1 Dimmable LED Drivers is one 60W slim Class 2, Class P, TYPE HL, 0-10V / 1-10V / Resistance / PWM dimmable led driver compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers making it the perfect choice for LED tape lighting, tube lighting, linear lighting and multiple other commercial lighting applications. The LO series 36V LED drivers is also available in a non-dimmable version.The UL cUL FCC CE Listed led driver aluminum enclosure is rated IP65 for indoor or outdoor installations and includes a separate input and output wiring compartment for clean and easy installation. The RoHS led driver transformer features hiccup mode, over current and short circuit protections, as well as an efficiency over >88% resulting in a low operating case temperature.
Universal 100-277VAC Input | Single Channel 12V, 24V, 36V, 48V Output | Listed Enclosure
Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt
Driver Type: Class 2 Class P
Enclosure: LISTED Enclosure
Dimming: PWM, 0/1-10V or Resistor Dimmable; Non-Dimmable Available
Environmental: Dry and Damp
IP Rating: IP65 IP67
Features:
Wiring Drawing OPTIONS:
Dimension Drawing(mm):
Package:
| Package | Piece/Carton(pcs) | Dimension/Carton(mm) | Dimension/Brown Box(mm) | Piece Weight(KG) | Gross Weight/Carton(KG) |
| OEM package | 20 | 360 x 356 x 190 | 339 x 65 x 41 | 0.86 | 18 |
Model No.: KS-60LW-36O
Brand: KSPOWER
Warranty Period (years): 5-Year
Lighting Solution Service: Lighting And Circuitry Design, Project Installation
Place Of Origin: China
Output Type: Single
Efficiency: 90%
Material: Aluminum Case
Warranty: 5 Years
Power Factor@Max. Load: >0.95
Color: Black
Input: 100v-277vac
Power Supply Mode: Constant Voltage
Protections: Ocp Ovp Scp Lps
Envir. Protection Rating: Indoor Or Outdoor Use
Usage: Street Light, Tunnel Light, Wall Lamp,Spot Light
Output Type: Pwm Output
Output Power: 1 - 50w
Dimensions LxWxH (mm): 310*32*24.5mm
Certification: Ul Cul Ce Class 2 Class P TYPE HL...
Packaging: a. 1pc per inner brown box b. 20pcs per standard carton c. custom is acceptable d. sample is available
Productivity: 10000 pcs/month
Transportation: Ocean,Air,Express,Land,Others
Place of Origin: China
Supply Ability: 300000 pcs/month
Certificate: ISO9001:2015, UL/cUL GS Class 2 Class P SELV...
HS Code: 850440
Port: Shenzhen
Payment Type: T/T,Paypal,Others
Incoterm: FOB,EXW,Express Delivery
