Name: 18W 9V 2A Desktop Type Ac Dc Adapter
Brand: Power Adapter Manufacturer | LED Driver Factory | OEM Power Supply Chi
SKU: KS39DU-0900200
Availability: InStock
Rating: 5 (1 reviews)

Description
Product Attributes
Supply&Others
Packaging & Delivery

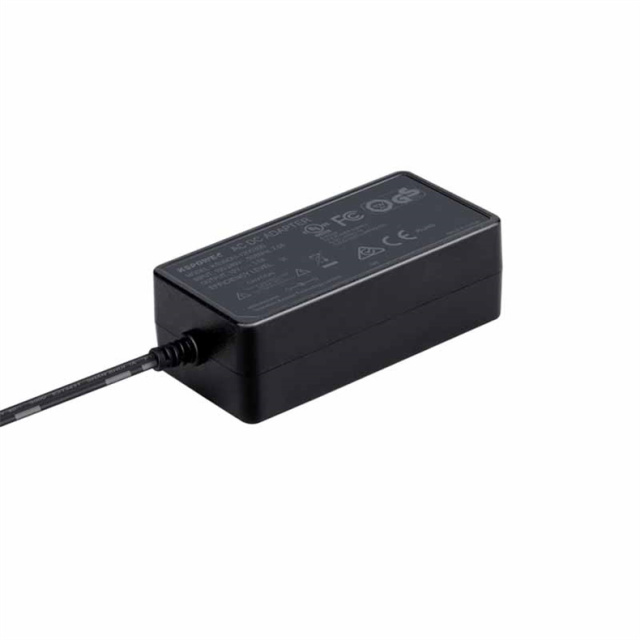

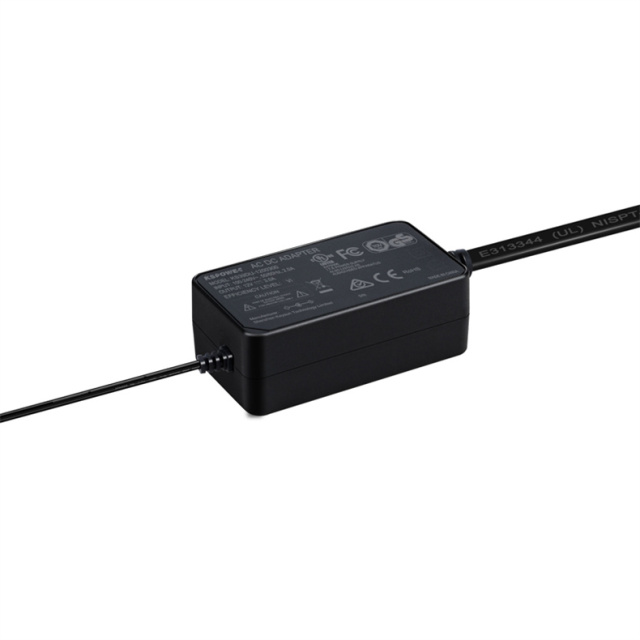

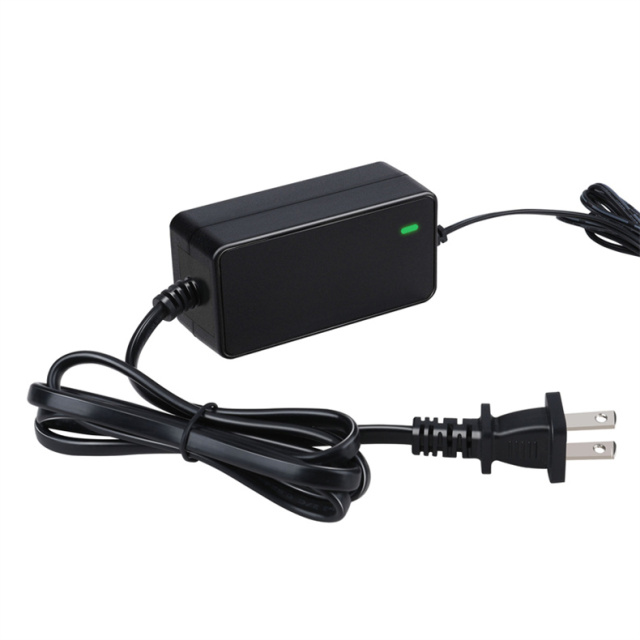

18W 9V 2A Desktop Type AC DC Adapter

The DC Power Supply adapter is a high quality, 9V2A 18W dc output desktop style constant voltage adaptor series with green LED indicator light for power on. This universal ac to dc adapter accepts full range 100~240V AC input voltage and lock type DC connector options. The RoHS ac adapter is a class 2 rated and certified for UL/cUL, GS, CE, RCM, KC, PSE,CCC, IEC/EN 62368 safety standards for AV and IT applications. We also provides 3 years warranty for the desktop style external power supply.

Features

◆ Desktop style, up to 18W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin): IEC320-C8;

ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14

◆ Pass LPS (limited power source)

◆ Compact Size, fully enclosed plastic case

◆ LED indicator for power on

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 3.740 x 1.772 x 1.259
Dimensions LxWxH (mm): 95 x 45 x 32
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.1W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL60950, CSA22.2, TUV EN60950, AS/NZS 60950, GB4943, J60950(H22), K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS

Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc

Mechanical Specification

18 36w

AC INLET

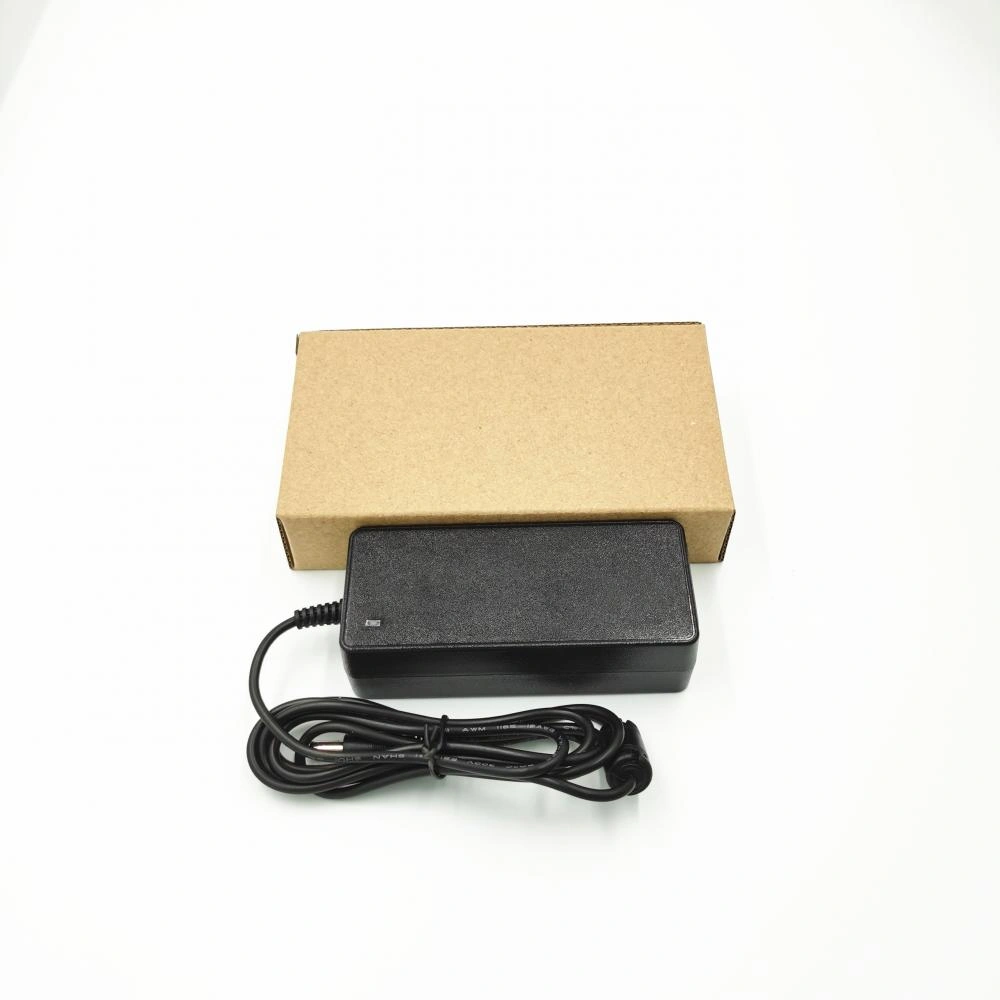

Package

Package	Piece/Carton(pcs)12.5	Dimension/Carton(mm)	Dimension/Brown Box(mm)	Piece Weight(KG)	Gross Weight/Carton(KG)
OEM package	20	495 x 420 x 170	199 x 90 x 75	0.55

Model No.: KS39DU-0900200

Brand: KSPOWER

Place Of Origin: China

Output Type: Dc

Connection Method: Desktop

Usage: Laptop LED LCD...

Output Type: Single Output

Certification: UL CE FCC GS KC PSE CCC...

Color: Black / White

Type: OEM

Connection: Desktop

Warranty: 3 Years

Material: PC

Input: 100-240VAC 50-60HZ

Efficiency: Level VI

Protections: OCP OVP SCP

DC Connector: Male 5.5*2.1mm Or Custom

DC Cord: 1.2m Or Custom

AC Plugs: US/ UK/ AU/ EU/ KR/ CN (optional)

Packaging: a. 1pc per inner brown box b. 50pcs per standard carton c. custom is acceptable d.sample is available

Productivity: 300000

Transportation: Ocean,Air,Express,Land,Others

Place of Origin: China

Supply Ability: 500000

Certificate: ISO9001:2015, UL, CE, FCC, RCM, KC, RoHS, GS, PSE, CB...

HS Code: 850440

Port: Shenzhen

Payment Type: T/T,Paypal,Others

Incoterm: FOB,EXW,Express Delivery,DDP,DDU

Selling Units:Piece/Pieces

Package Type:a. 1pc per inner brown box b. 50pcs per standard carton c. custom is acceptable d.sample is available

Picture Example:

18W 9V 2A Desktop Type Ac Dc Adapter
